Product Description:
Functions
The MP plastic blow molding machine is designed for processing various plastic hollow products with high molecular weight. It is capable of manufacturing hollow products ranging from 5 milliliters to 100 liters in size. These products encompass a wide range, including bottles, pots, jars, barrels, toys, toolboxes, bed boards, desk boards, chairs, and auto parts. The machine is versatile in that it can handle different materials such as PE, PP, PVC, PA, PC, PS, and EVA, while also delivering impeccable results in the production process.
Features:
1.1.2 Features
a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.
b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.
c) Mould clamping device adopts vertical compression, three pilot post, big beam arm and linear guider, cylinder spindle and double working position. Mould moves fast and stably.
d) Improved design of hydraulic oil loop. Power saving, rapid and stable.
e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.
f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of moulds.
g) Three operation modes-“Manual”, “Semi Auto”, “Full Auto”, are allowed to select.
h) Safety door adopts electric and mechanical safety devices( no mould closing happens when safety door opens) which make operation safe and reliable.
i) This machine has two blowing functions of straight cutting and oblique cutting.
Technical Parameters:
Basic Specifications
- Applicable materials: PE, PP, PVC, PA...
- Max product volume: 2 Liters
- Number of heads: 1, 2, 3, 4, 5, 6
- Machine dimension (LxWxH): 2.87m x 2.14m x 2.28m
- Machine weight: 3.5 Tons
Mould Clamping System
- Mould clamping force: 30 KN
- Platen opening strokes: 120-350 mm
- Plate stroke: 380 mm
- Max mould sizes (WxH): 360mm x 300mm
Extrusion System
- Screw diameter: 55 mm
- Screw slenderness ratio (L/D): 24
- Plasticizing ability (HDPE): 45 KG/H
- Screw heating stage/zone: 3
- Screw heating power: 10.1 KW
- Screw fan power: 0.14 KW
- Extrusion motor power: 11 KW
Head
- Head heating stage/zone: 5
- Head heating power: 6.5 KW
Energy Consumption
- Total machine power: 40 KW
- Oil motor power: 7.5 KW
- Air pressure: 0.6-0.8 MPA
- Compression air volume: 0.8-1 M3/H
- Cooling water volume: 30 L/H
Applications:

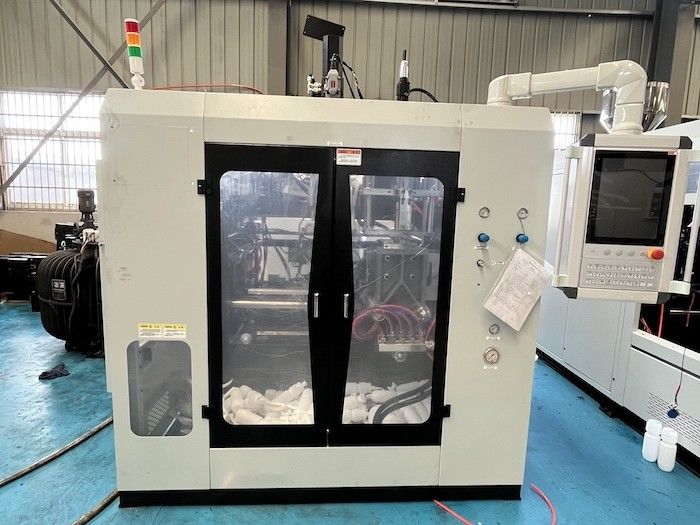

MEPER 5D 55d Extrusion Molding Machine is a versatile piece of equipment designed for various product application occasions and scenarios. With its origins in China, this machine boasts CE/ISO9001:2008 certification, ensuring high-quality standards.
The minimum order quantity for the MEPER 5D 55d is just 1 set, and the price is negotiable, making it accessible for businesses of all sizes. The machine comes with standard packaging for easy transport and has a delivery time of 25-35 work days. Payment terms include L/C and T/T, providing flexibility for customers.
With a supply ability of 100 sets per month, the MEPER 5D 55d is a reliable choice for those in need of efficient extrusion molding equipment. The machine features a screw slenderness ratio of 24 and a screw diameter of 55mm, making it suitable for a variety of materials including PE, PP, PVC, and PA.
Weighing 3.5 tons, this automatic extrusion blow molding machine is equipped to handle a range of production needs. It comes with options for 1, 2, 3, 4, 5, or 6 heads, allowing for flexibility in manufacturing processes.
Whether you are in the market for an auto deflashing blow molding machine or require molding extruder equipment, the MEPER 5D 55d is a reliable choice. Its versatility and high-performance capabilities make it ideal for a wide range of industries and applications.
Customization:
Product Customization Services for MEPER Plastic Extrusion Machine - Model 5D 55d
Customization Options:
- Brand Name: MEPER
- Model Number: 5D 55d
- Place of Origin: China
- Certification: CE/ISO9001:2008
- Minimum Order Quantity: 1 set
- Price: negotiable
- Packaging Details: standard packaging
- Delivery Time: 25-35 work days
- Payment Terms: L/C, T/T
- Supply Ability: 100 sets per month
- Max product volume: 2L
- Plate stroke: 380mm
- Mould clamping force: 30KN
- Screw slenderness ratio: 24
- Screw diameter: 55mm
Customization Keywords: Plastic Extrusion Machine, automatic extrusion blow molding machine, 4 cavity blow moulding machine
